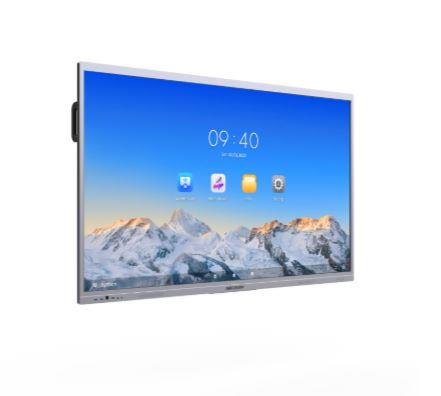

75-inch 4K Interactive Display
The Hikvision Interactive Flat Panel is a kind of newly developed intelligent teaching assistance product which integrates with the latest technologies of touch control, HD display, video processing, network communication, interactive control, sound control. It can be widely applied to the classroom, online teaching, training center, etc.
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
- EDLA Certified
General
- Application
- Corporate/meetingroom, Education/Classroom
Näyttö
- Operating Hours
- 16/7
- Image diagonal
- 86 "
- Resolution
- 3840 x 2160
- Brightness
- 400 Nits
- Portrait
- Kyllä
Functions
- Protective Glass
- Kyllä Surface Hardness: 9H (Pencil), 7 (Mohs). With Anti-Glare Glass and 25% Haze
- TV Tuner
- Ei
- Built-in speaker
- Kyllä 2 ×20 W+25 W loudspeaker
- Mediaplayer type
- Integrated Android Android 13
- Mediaplayer type
- OPS-Slot
Touchscreen
- Touch techology
- IR Touch
- Number of touchpoints
- 50 pcs.
Connections
- Video in
- DisplayPort DP 1.2
- Video in
- HDMI x3 HDMI 2.0
- Video in
- USB-C x2 Supports USB 2.0, DP 1.2, and charging (65W front, 15W side)
- Video in
- VGA x1
- Video out
- HDMI x1 HDMI 2.0
- Audio inputs
- 3,5mm tele x1
- Audio outputs
- 3,5mm tele x1
- Audio outputs
- Toslink (optical) x1
- USB-C
- Kyllä
- USB power delivery
- 65W front, 15W side
Communication
- Ethernet (RJ-45)
- Kyllä
- Wi-Fi
- Built-in WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz)
- Wireless image sharing
- Kyllä Support screen mirroring by Android phones
Energy
- Power Supply
- 100 to 240 VAC, 50/60 Hz Built-in Power supply
- Consumption standby
- 0,5 W
- Consumption normal
- 205 W average
Mitat ja Paino
- VESA mount interface (mm)
- 800x600 4× M8-25 mm
- Width
- 1 960,5 mm
- Height
- 1 158,2 mm
- Depth
- 82,5 mm
- Net weight
- 64,13 kg
Additional information
- Included Accessories
- Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 m touch USB cable, 3.5 m HDMI cable (2.0), power cable , bluetooth remote control.
- Warranty
- 3 vuotta
