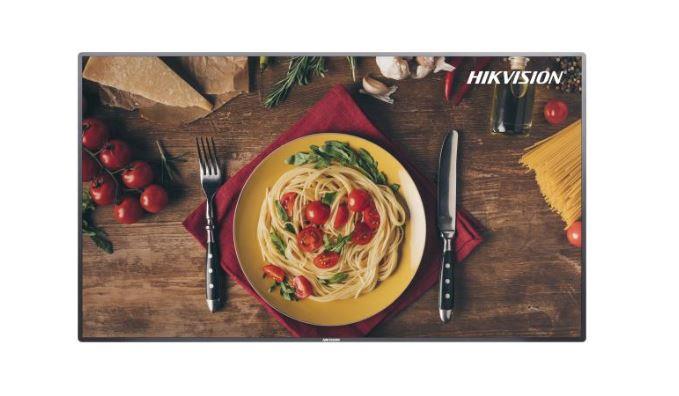

55-inch Narrow Bezel Width Wall-mounted Digital Signage

  • Plastic shell appearance, slim frame, and all-in-one design.
  • Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
  • Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
  • Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
  • Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
  • Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
  • Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.


Non-stock Item
Kyllä

Display

Operating Hours
24/7
Image diagonal
55 "
Resolution
3840 x 2160
Brightness
500 Nits
Portrait
Kyllä

Functions

Protective Glass
Ei
Videowall
Ei
Outdoor use
Ei
TV Tuner
Ei
Built-in speaker
Kyllä 2x 10W
Mediaplayer type
Integrated Android Android 8.1 OS, Cortex-A17, 4-core, main frequency 1.6 GHz, 2GB/16GB

Connections

Video in
HDMI x2
Video in
VGA
Audio inputs
3,5mm tele
Audio outputs
3,5mm tele

Communication

Ethernet (RJ-45)
Kyllä
Wi-Fi
Built-in

Energy

Power Supply
100-240 V AC; 50/60 Hz; internal Pos
Consumption standby
0,5 W
Consumption normal
200 W

Dimensions and weight

Width
1 403 mm
Height
856 mm
Depth
217 mm
Net weight
19,2 kg

Additional information

Included Accessories
Digital signage × 1, power cord × 1, remote control × 1, wall-mounted backboard × 1, package of mounting bolts × 1, wall-mounted screw × 4, desiccative × 1, quick start guide × 1

Paketin tiedot

Paketin mitat
1 394 x 84 x 209 mm
Paketin paino
23,58 kg
