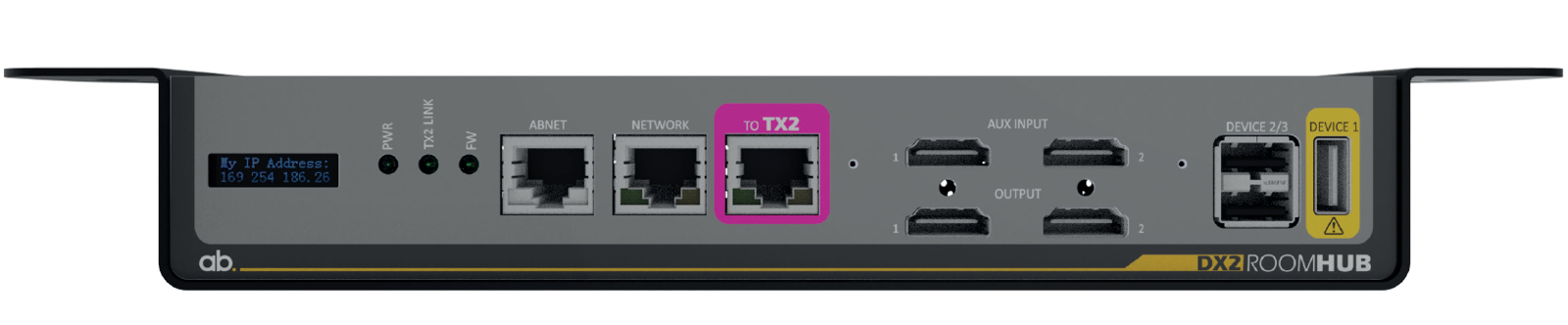

DX2 Room Hub
Provides VC/display control, signal routing/switching and room management. Works with most video conferencing products and traditional codecs.
Videobars are supported in either, or both, of the following:
- Bring Your Own Device (BYOD) mode
- Licensable API monitors all functionality and connectivity with data available for 3rd party management platforms to simplify maintenance and support
- Uncompressed 4K60 4:4:4 resolution on inputs and outputs
- Cat6a/Cat7 link to TX2 (Video, audio, USB and Control) up to 35m
- System Configuration via internal web server for set-up and control
- 2 Auxiliary HDMI input ports with input signal sensing
- 2 independently scalable HDMI output ports
- Independent EDID control of each input
- HDCP selectable for each input
- 3 USB device ports, 2 with configurable power control
- ABNET for connection of AB peripheral devices
- Programmable CEC display control

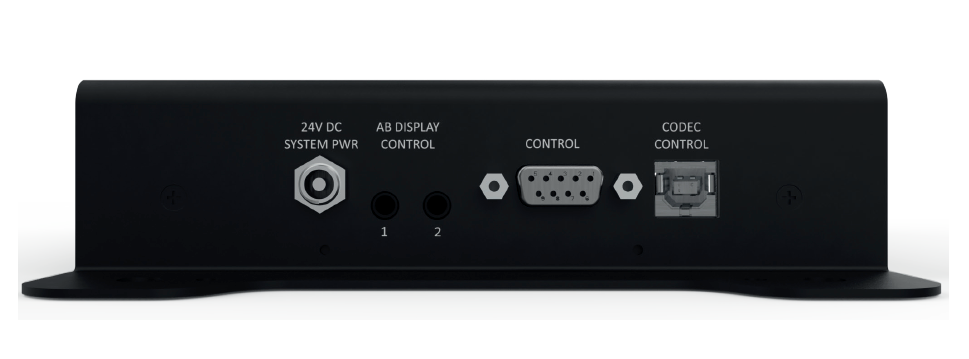

- 2 Programmable RS232 display control ports
- Programmable Cisco codec control port
- Programmable RS232 3rd party control system port
- OLED status display
- External Universal PSU (specify country for correct mains cable)
DX2/TX2 AV Infrastructure
Ashton Bentley CTO, Roger McArdell, gives a comprehensive overview of the TX2 Table Hub and DX2 Room Hub. Covering system connectivity, features and System Configuration tool.
System Basics
The TX2 Table Hub should be installed under a table, in a lectern or wherever connection to laptops is required.
The DX2 Room Hub should located near the display or where the Video Bar or VC equipment is located.
The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m. Simple to install, with minimal cabling.
Allmänt
- Extender typ
- Mottagare (Rx)
- Räckvidd (Max)
- 35 m via Cat6a/Cat7 cable
Bild specifikation
- Max stödd upplösning
- 3840 x 2160
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
- Scaler
- Ja Independently scalable HDMI output port for local monitor or content ingest
Anslutningar
- Bildanslutning in
- HDMI x2 AUX input
- Bildanslutning in
- TP (RJ-45) x1 ABNET input from TX2 Table Hub
- Bildanslutning ut
- HDMI x2 (loop out) on table hub, x2 on Room Hub
- Styrning
- Auto-växling
- Styrning
- CEC Programmable CEC display control
- Styrning
- RS-232
- Styrning
- Web interface For system config
- USB passthrough
- Ja
- USB standard
- 2.0 up to 350 Mbit/s data rate
Energi
- Strömförsörjning
- TX2 Table Hub is powered via PoC from DX2 Room hub. Room Hub powered via external locking 24v (64.8W) power supply (supplied). USB-C power provided by optional, local 24v 5A PSU (900-00585)
Mått och vikt
- Bredd
- 280 mm
- Djup
- 155 mm
- Höjd
- 40 mm
Övrigt
- Montering
- Fristående/Hylla
- Montering
- Vägg Room Hub
- Garanti
- 3 år
Förpackningsinfo
- Förpackningsstorlek
- 320 x 150 x 330 mm
- Förpackningsvikt
- 5,00 kg
