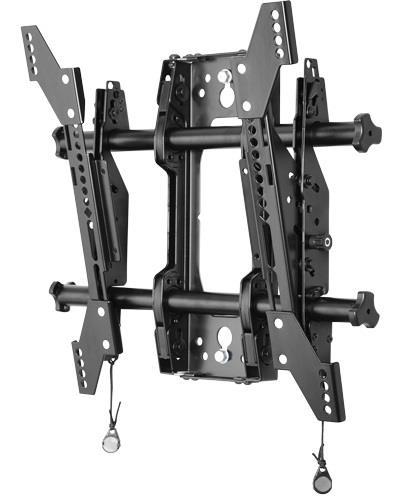

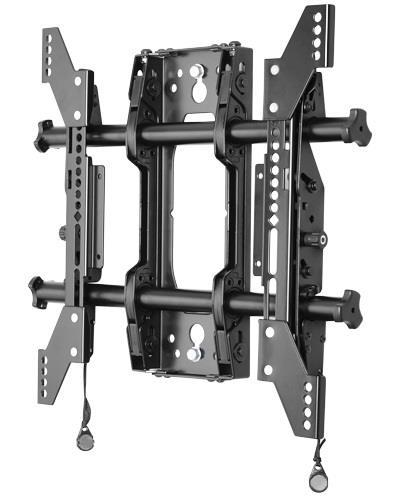

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Key Features:
• Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
• Tilt can be locked at 0°, -6° or -12°
• ControlZone leveling allows post-installation fine-tuning of height and leveling
• ClickConnect offers an audible click when the display safely engages with the mount
• Post-installation lateral positioning
• Set screws keep the mount rigid, stable and secure throughout the life of the installation
• Exclusive nesting spacers can be stacked to achieve any depth
• Quick-Store Cords use magnets to easily store and access pull cords
• Integrated Security
• Ships with a custom hardware kit that can be hung from mount rails if installing in stages
• Easy Open box with less waste to throw away
- VESA interface
- 200x200-455x400
Allmänt
- Färg
- Svart
- Display orientering
- Landskap
Funktioner
- Höjdjusterbart
- Ja 25mm
- Sidojusterbart
- Ja
- Djupjusterbart
- Nej
- Tiltbart
- Ja +2°, -12°
- Vridbart/Pan
- Nej
- Roterbart/Pivot
- Nej
- Motoriserat
- Nej
- Låsbart
- Ja Med hänglås (ingår ej)
Montering
- Antal displayer
- 1 st.
- Max belastning (per skärm)
- 34 kg
- Monteringssätt
- Vägg
- VESA hålbild (mm)
- 100x100, 100x200, 200x100, 200x200, 200x400, 300x200, 300x300, 300x400, 400x400
- Videovägg
- Nej
Övrigt
- Garanti
- 10 år
Förpackningsinfo
- Förpackningsstorlek
- 510 x 500 x 75 mm
- Förpackningsvikt
- 7,50 kg
