KDS−100DEC−U is a professional AVoIP decoder designed to render high quality 4K video from open standard H.264/H.265 streams over standard 1GbE networks. It delivers pristine images to local HDMI displays with ~40 ms end to end latency (when paired with KDS 100 encoders), ideal for command rooms, monitoring walls, and operator desks.
- Dual Streaming — Supports KDS–100 Encoder primary and/or secondary stream.
- KVM over IP — control with locally connected keyboard/mouse remote hosts from any decoder location. With ~40 ms latency, operators get real–time responsiveness.
- Predefined deployment profiles — make system setup easy and adaptable to both high–capacity and constrained networks.
- Channel–based routing — easily choose your source, IP addressing expertise required.
- Auxiliary Data transmission — RS–232 control commands and USB data are delivered to/from peripheral devices, providing seamless AV and control integration.
- Kramer AVoIP Manager integration — enables automatic device discovery, centralized configuration, and real–time monitoring across the entire AVoIP deployment.
- IT–grade Security — HTTPS/TLS, 802.1x, and OWASP–10 aligned practices.
Applications
- Operator Workstations & Control Rooms — Low latency display plus KVM for decisive, real–time control.
- Campus & Enterprise AV — Flexible source to screen routing across buildings via 1GbE.
- Recording / Confidence Monitoring — Use the secondary stream for confidence view or ingest.
- Education — Reliable playback to classrooms, auditoriums, and overflow spaces using dual streams.
- Corporate & Public Venues — Channel based routing simplifies source selection for signage and meeting spaces.
- Constrained Networks — Low bandwidth mode keeps sessions stable over limited or congested links.
Allmänt
- Modellserie
- KDS-100
- Extender typ
- Mottagare (Rx)
- Teknologi
- H.264, H.265
Bildspecifikation
- Max stödd upplösning
- 3840 x 2160 Maximum Streaming Resolution: 3840x2160@60Hz 4:2:2
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4

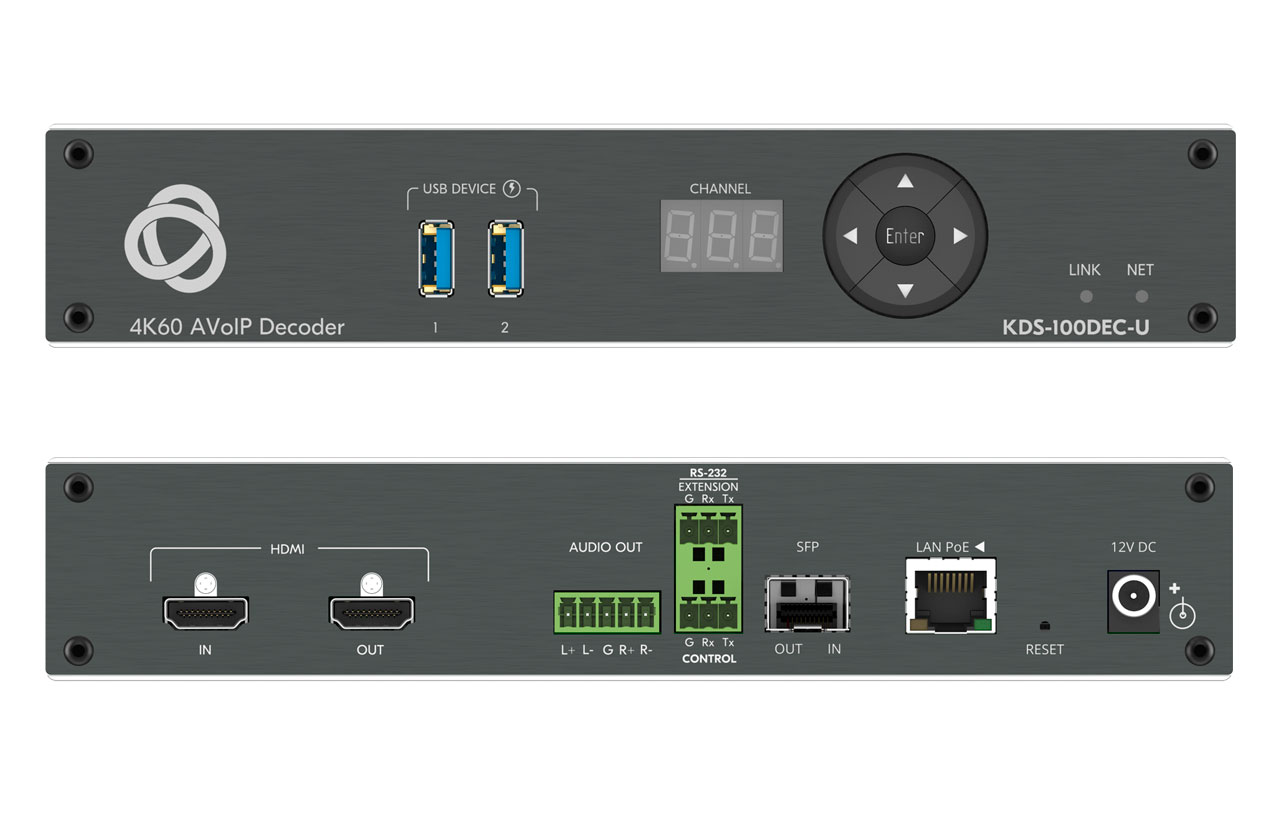

Anslutningar
- Bildanslutning in
- HDMI, IP stream (RJ-45), SFP Fiber IP Stream
- Bildanslutning ut
- HDMI
- Ljudanslutning in
- Euroblock lågnivå Balanced audio
- Ljudanslutning ut
- Euroblock lågnivå Balanced audio
- Styrning
- Ethernet/IP (RJ-45), Frontpanel, RS-232, Web interface
- USB passthrough
- Ja KVM Extension
Kommunikation
- Latency
- 40 ms
- Switch Data Rate
- 1GbE
- Krav Nätverksswitch
- 1Gb Ethernet, Multicast with IGMPv2
Energi
- Strömförsörjning
- PoE+: IEEE 802.3at, or Optional Power Adapter: 12V DC, 5A. Unit has to be supplied by a power supply specified as a Limited Power Source (LPS) or PS2 source of supply
Mått och vikt
- Bredd
- 215 mm
- Djup
- 163 mm
- Höjd
- 44 mm
- Nettovikt
- 1,4 kg
Övrigt
- Montering
- 19" Rack, 1U With optionial rack adapter (RK-1)
- Montering
- Bord With optionial mounting brackets (RK-19N)
Förpackningsinfo
- Förpackningsstorlek
- 350 x 170 x 50 mm
- Förpackningsvikt
- 1,30 kg
