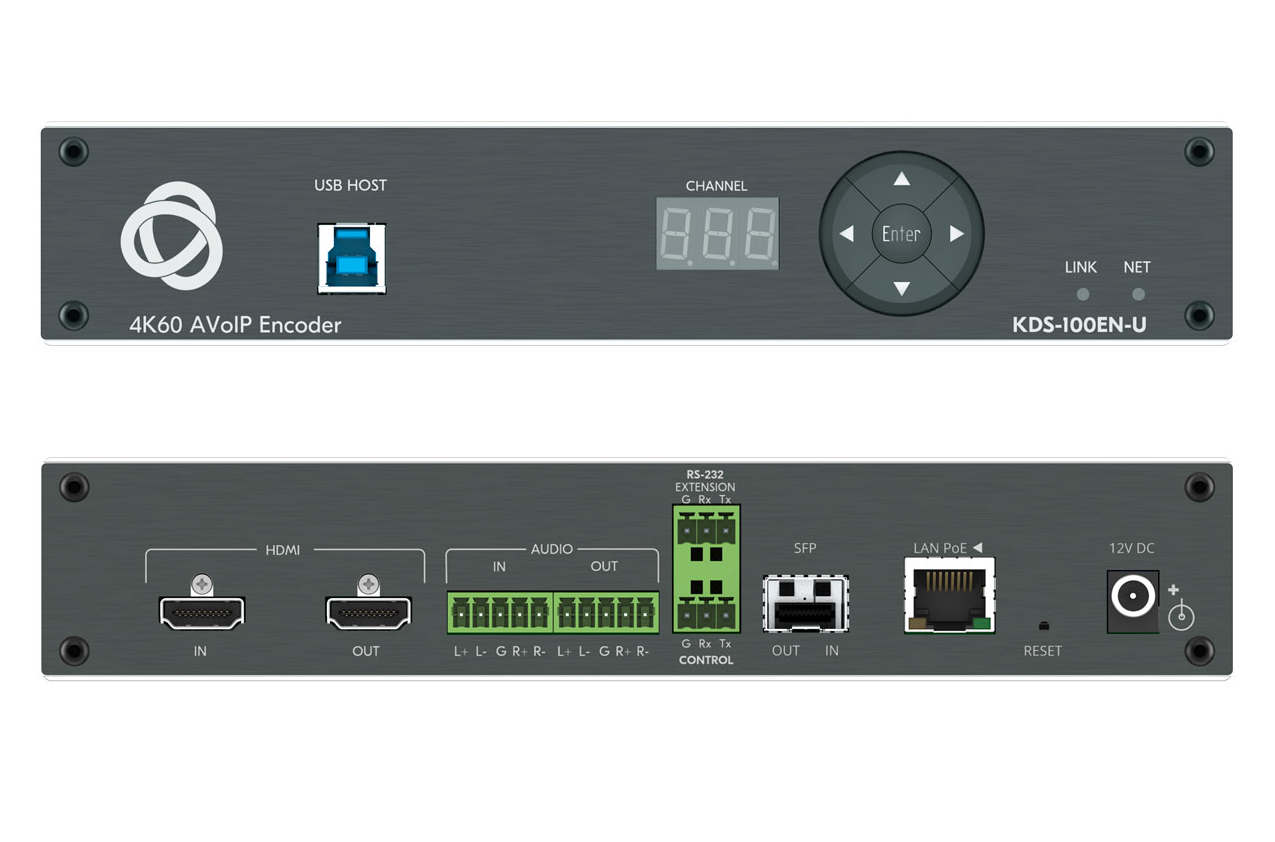

The KDS−100EN−U is a professional−grade AVoIP encoder for high−quality 4K video distribution over standard 1GbE networks. Using open−standard H.264/H.265 compression, it delivers excellent visual fidelity while ensuring seamless interoperability across mixed−vendor environments.
- Dual Streaming — Ideal for monitoring, recording, overflow rooms, and collaboration workflows.
- Built–in KVM over IP — Enables secure keyboard/mouse control of remote hosts from any decoder location. With ~40 ms latency, operators get real–time responsiveness.
- Predefined deployment profiles — Make system setup easy and adaptable to both high–capacity and constrained networks
- Channel–based routing model — Lets users switch sources by channel name/number—no IP addressing expertise required.
- Auxiliary Data transmission — RS–232 control commands and USB data are delivered to/from peripheral devices, providing seamless AV and control integration.
- Kramer AVoIP Manager integration — Enables automatic device discovery, centralized configuration, and real–time monitoring across the entire AVoIP deployment.
- IT–grade Security — HTTPS/TLS, 802.1x, and OWASP–10 aligned practices.
Applications
- Command & Control — Low latency visuals with KVM for rapid decision making, incident response, and 24/7 monitoring.
- Enterprise Campuses — Distribute 4K content between buildings and rooms over existing 1GbE networks with minimal configuration.
- Recording — Low–bandwidth secondary stream perfect for recording
- Education — Share lectures and live events across classrooms, auditoriums, and overflow spaces with dual stream flexibility.
- Corporate AV — Channel based routing for meeting rooms, lobbies, and signage—fast source switching without IP complexity.
- Public Venues — Scale content to many displays reliably using open standards and centralized management.
Allmänt
- Modellserie
- KDS-100
- Extender typ
- Sändare (Tx)
- Teknologi
- H.264, H.265
Bildspecifikation
- Max stödd upplösning
- 3840 x 2160 Maximum Streaming Resolution: 3840x2160@60Hz 4:2:2
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
Anslutningar
- Bildanslutning in
- HDMI
- Bildanslutning ut
- HDMI, IP stream (RJ-45), SFP Fiber IP Stream
- Ljudanslutning in
- Euroblock lågnivå Balanced audio
- Ljudanslutning ut
- Euroblock lågnivå Balanced audio
- Styrning
- Ethernet/IP (RJ-45), Frontpanel, RS-232, Web interface
- USB passthrough
- Ja KVM Extension
Kommunikation
- Latency
- 40 ms
- Switch Data Rate
- 1GbE
- Krav Nätverksswitch
- 1Gb Ethernet, Multicast with IGMPv2
Energi
- Strömförsörjning
- PoE+: IEEE 802.3at, or Optional Power Adapter: 12V DC, 5A. Unit has to be supplied by a power supply specified as a Limited Power Source (LPS) or PS2 source of supply
Mått och vikt
- Bredd
- 215 mm
- Djup
- 163 mm
- Höjd
- 44 mm
- Nettovikt
- 0,9 kg
Övrigt
- Montering
- 19" Rack, 1U With optionial rack adapter (RK-1)
- Montering
- Bord With optionial mounting brackets (RK-19N)
Förpackningsinfo
- Förpackningsstorlek
- 350 x 170 x 50 mm
- Förpackningsvikt
- 1,30 kg
